Products
Focusing on RF front-end device R&D, providing high-performance hardware solutions for 5G communication networks
Metal Coaxial Filters

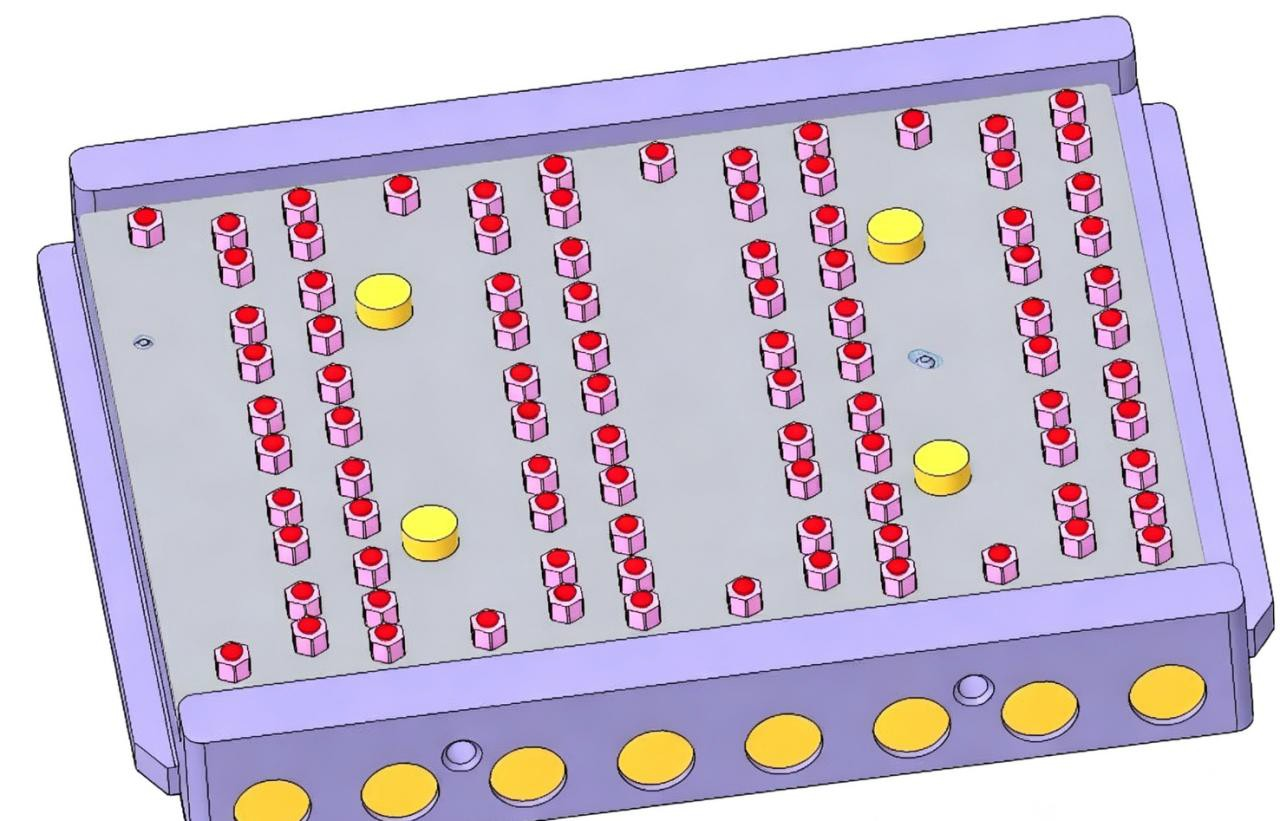

6-18G Filter Component
Technical Specifications
| Frequency | 6-18 GHz |
| InsertionLoss | ≤1.5 dB |
| Isolation | ≥45 dB |
| Size | Custom Size |
Features
Wide bandwidth coverage, low insertion loss, high power capacity
Suitable for broadband RF systems, providing high-selectivity band filtering to meet multi-band communication requirements

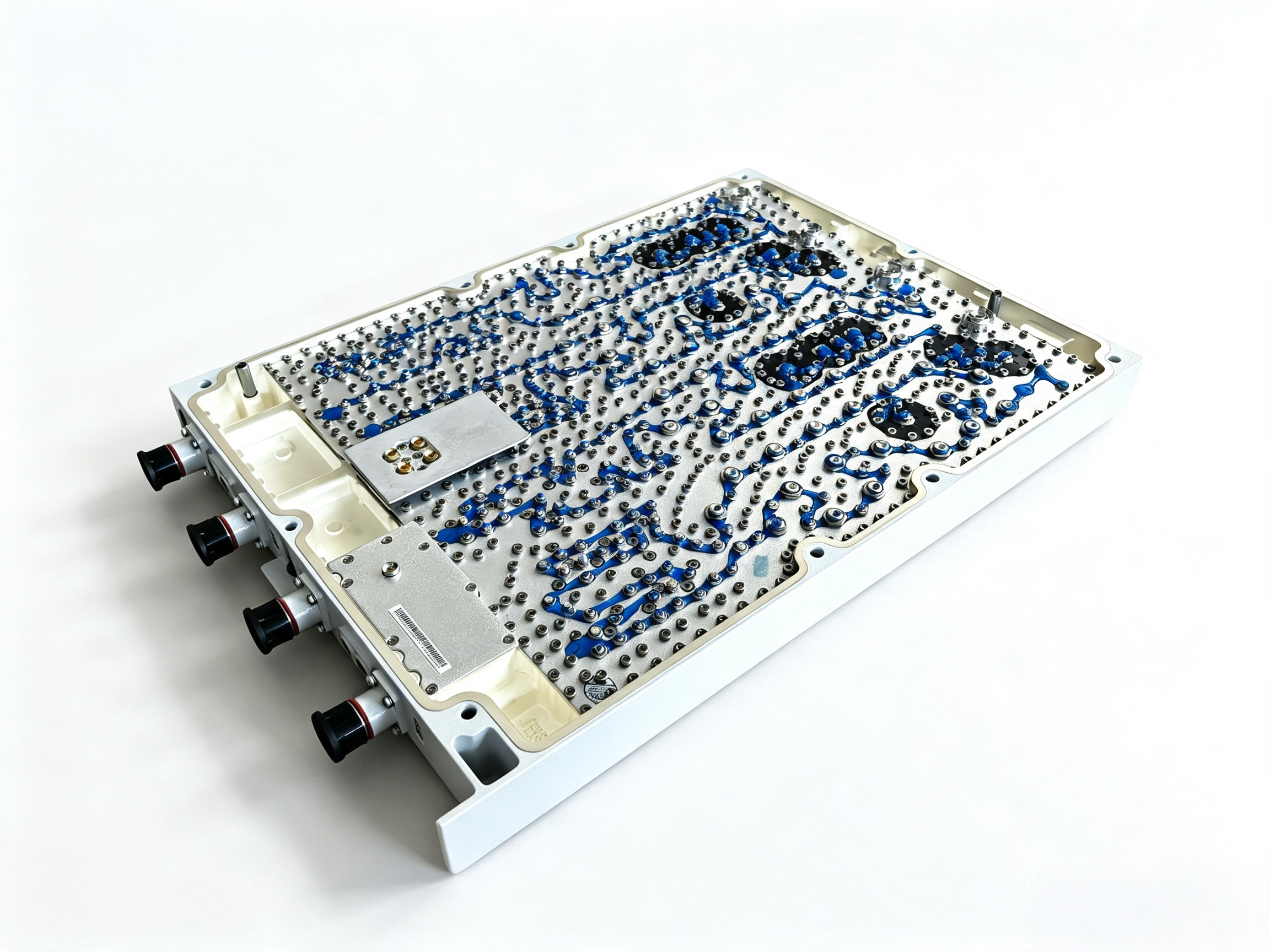

8T8R WD5MYAAZZEH Quad-Diplexer (Model 1)
Technical Specifications
| Tx1 | 1805~1880MHz + 2110~2170MHz |
| Tx2 | 2620~2690MHz |
| Rx1 | 1710~1785MHz + 1920~1980MHz |
| Rx2 | 2500~2570MHz |
| TxLoss | Max 2.3dB |
| RxLoss | Max 3.05dB |
| Size | 495×356×40mm |
Features
High integration, TE dual-mode technology, dual-bandpass technology, low insertion loss and high power
Adaptable to FDD systems, built-in 8-channel TX and RX, achieving high-performance integrated RF front-end solution

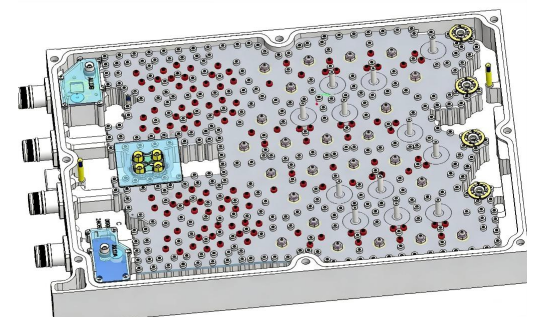

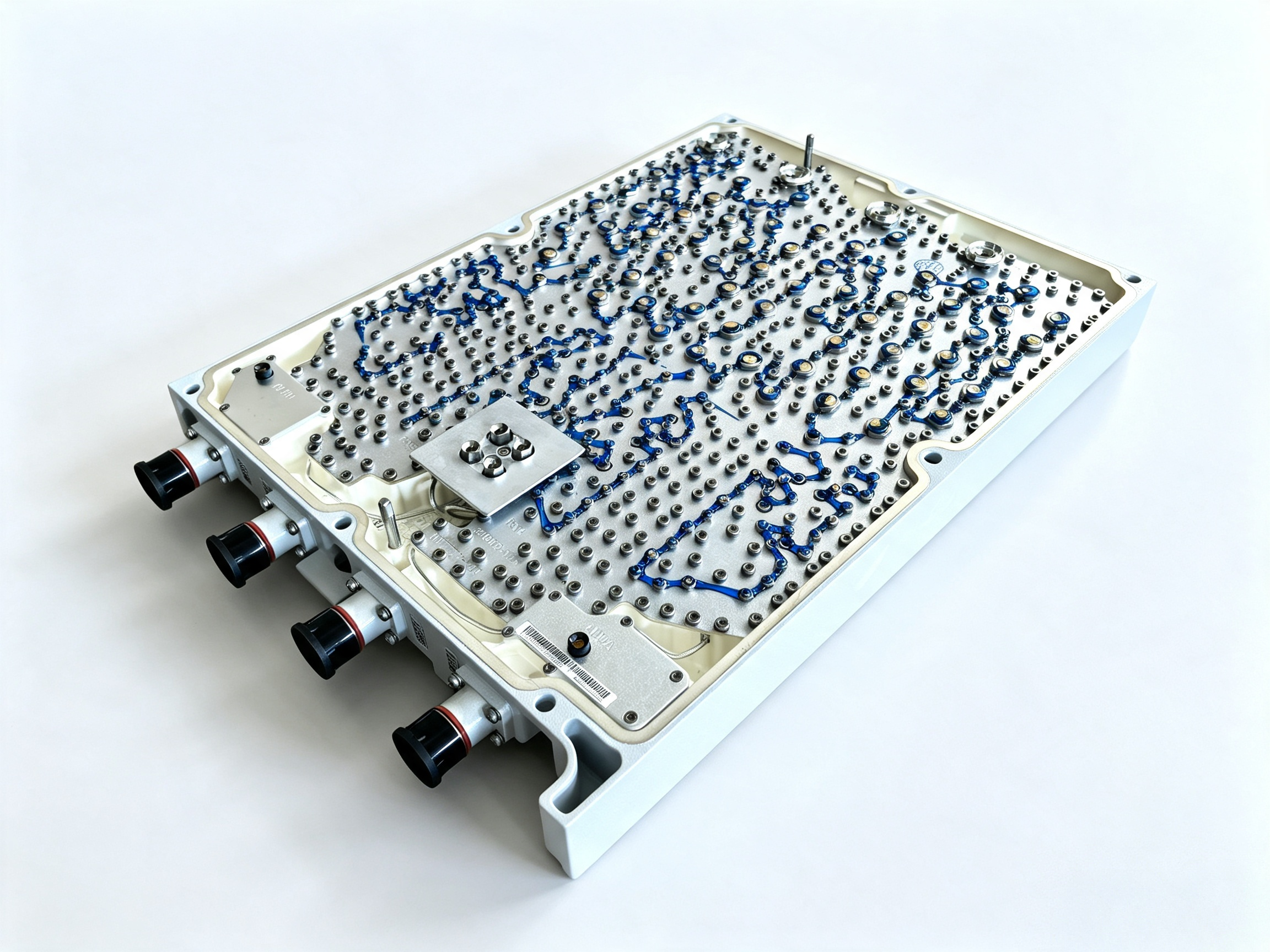

8T8R WD5MYAAZZEH Quad-Diplexer (Model 2)
Technical Specifications
| Tx | 1830~1880MHz + 2110~2165MHz |
| Rx | 1735~1785MHz + 1920~1975MHz |
| TxLoss | Max 3.0dB |
| RxLoss | Max 3.9dB |
| Size | 500×357.5×40mm |
Features
TM mode technology, high integration, low insertion loss, adaptable to high-power environments
Dedicated to FDD systems, using TM mode technology to achieve excellent RF performance in limited space

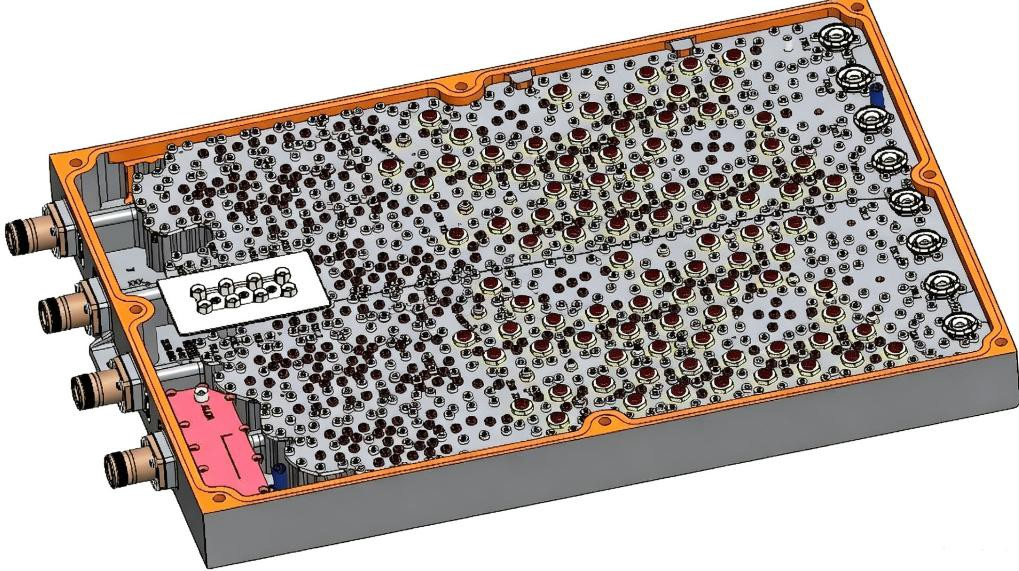

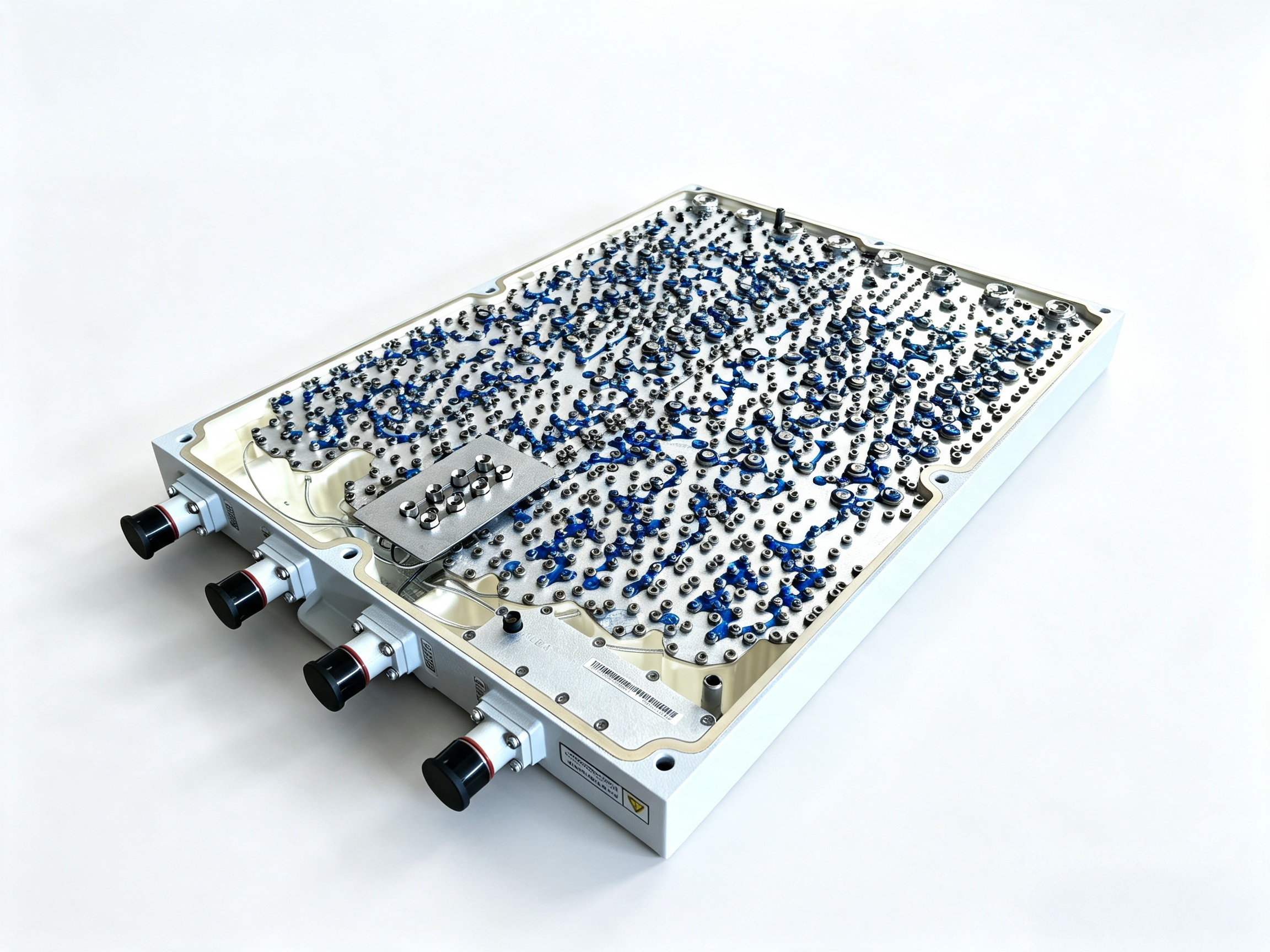

8T8R WD5MYAAZZEH Quad-Diplexer (Model 3)
Technical Specifications
| Tx | 2620~2690MHz |
| Rx | 2500~2570MHz |
| TxLoss | Max 1.84dB |
| RxLoss | Max 2.25dB |
| Size | 420×300×40mm |
Features
TE mode technology, dual-bandpass technology, miniaturized design, excellent insertion loss performance
Compact 8T8R solution, adaptable to FDD systems, balancing high performance with small size requirements

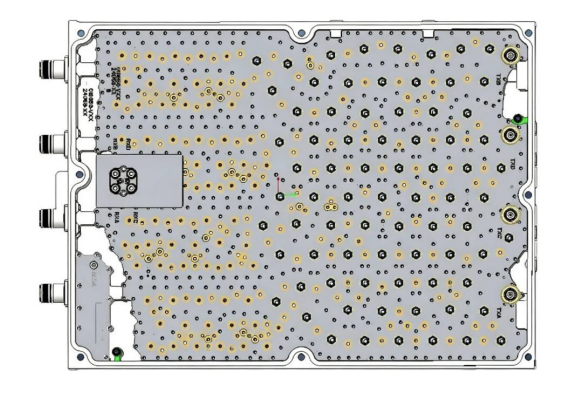

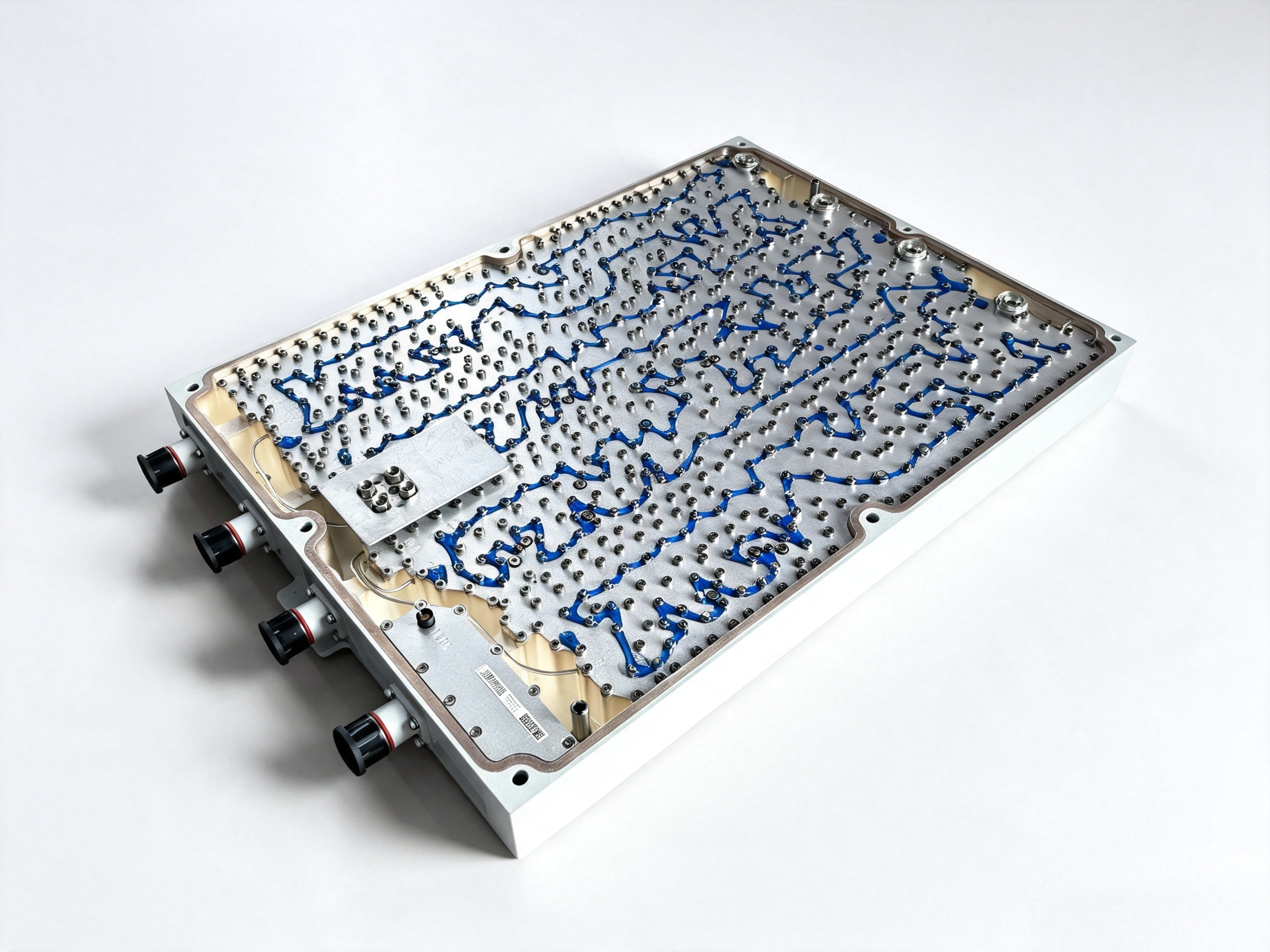

WD5MYAA9UCZ Quad-Diplexer
Technical Specifications
| Tx1 | 758~821MHz |
| Tx2 | 925~960MHz |
| Rx1 | 703~733MHz |
| Rx2 | 832~915MHz |
| TxLoss | Max 1.35dB |
| RxLoss | Max 2.1dB |
| Size | 480×356×45mm |
Features
Low-frequency miniaturization technology, high integration, low insertion loss, high-power adaptability
Low-frequency quad-diplexer, built-in 4-channel dual-band TX and RX, adaptable to low-frequency FDD systems
Ceramic Dielectric Filters

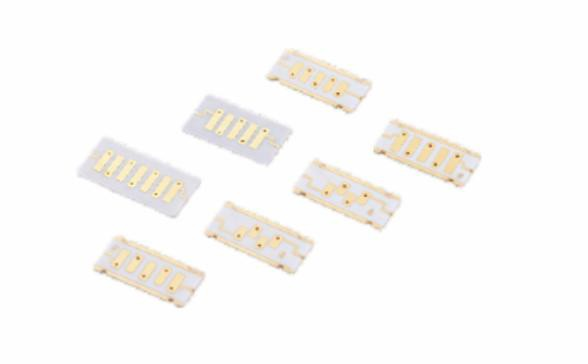

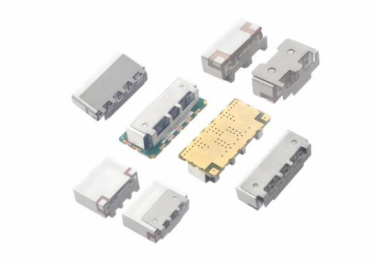

Ceramic Dielectric Filter
Technical Specifications
| Frequency | 500MHz-10GHz |
| Feature | Miniaturized, integrated, low temperature drift |
| QFactor | High Q value |
| Power | High power |
Features
Customizable on demand, wide frequency coverage, good rectangular coefficient
Medium-to-high frequency filtering, radar systems, electronic countermeasures, aerospace, satellite communications, radio ranging, WLAN
LC Filters
LC Filter
Technical Specifications
| Type | LC Structure |
| Application | General RF filtering scenarios |
Features
Compact structure, stable performance, cost-optimized
Suitable for signal filtering and band selection in various RF systems
Have customization requirements?
Business Inquiry
